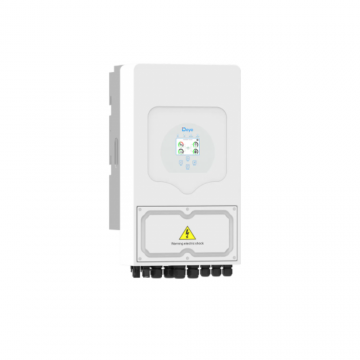

Invertor monofazat hibrid DEYE SUN-8K-SG01LP1-EU (8kW)
Invertor monofazat hibrid DEYE SUN-8K-SG01LP1-EU (8kW) SUN-7.6/8K-SG01LP1-EU | 8 kW | Monofazat | 2 MPPT | Invertor hibrid | Baterie LV acceptata Invertorul hibrid SUN 7.6/8K-SG, este potrivit pentru uz rezidențial si comercial usor, maximizand rata de autoconsum de energie solara si crescand impedanța energetica. In timpul zilei, sistemul fotovoltaic genereaza energie electrica care va fi furnizată initial sarcinilor. Apoi, excesul de energie va încarca bateria prin SUN 7.6/8K-SG. I n cele din urma, energia stocata poate fi eliberata atunci cand sarcinile o solicita. Bateria poate fi incarcata si de generatorul diesel pentru a asigura alimentarea neintrerupta in caz de intrerupere a retelei. Este echipat cu port RS485/CAN pentru comunicarea cu bateria. LCD tactil colorat, grad de protecție IP65 Cuplare AC pentru modernizarea sistemului solar existent Max. 16 bucati paralele pentru on-grid și off-grid Suporta mai multe baterii in paralel C urent max. de incarcare/descarcare de 190A 6 perioade de timp pentru incarcarea/descarcarea bateriei Suporta stocarea energiei de la generator extern Platforma de monitorizare inteligenta Datorita platformei de monitorizare inteligenta, invertoarele din seria completă Deye accepta oprirea de la distanta imediata atunci cand are loc un accident. Setarea parametrilor și actualizarea FW de la distanta, ceea ce faciliteaza operarea si operarea instalatiei fotovoltaice. Model SUN-7.6K-SG01LP1-EU SUN-8K-SG01LP1-EU Battery Input Data Battery Type Lead-acid or Lithium-ion Battery Voltage Range(V) 40-60 Max.Charging Current(A) 190 190 Max.Discharging Current(A) 190 190 Charging Strategy for Li-ion Battery Self-adaption to BMS Number of battery input 1 PV String Input Data Max. PV Input Power (W) 9880 10400 Max. PV Input Voltage (V 500 Start-up Voltage（V） 125 MPPT Voltage Range（V） 150-425 Rated PV Input Voltage (V) 370 Max Input Short-Circuit Current（A） 34+34 Max Operating PV Input Current（A） 26+26 No.of MPP Trackers/No.of String Per MPP Tracker 2/2+2 AC Input/Output Data Rated AC Input/Output Active Power（W） 7600 8000 Max AC Input/Output Apparent Power （VA） 8360 8800 Peak Power (off-grid)（W） 2 times of rated power,10s Rated AC Input/Output Current（A） 34.5/33 36.4/34.8 Max AC Input/Output Current（A） 38/36.3 40/38.3 Max Continuous AC Passthrough (grid to load)（A） 50 Rated Input/Output Voltage/Range(V) 220/230 0.85Un-1.1Un Grid Connection Form L+N+PE Power Factor Adjustment Range 0.8 leading to 0.8 lagging Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65 Total Current Harmonic Distortion THDi <
3% (of nominal power) DC Injection Current <
0.5%ln Efficiency Max Efficiency 97.6% Euro Efficiency 96.5% MPPT Efficiency ＞99% Equipment Protection Integrated DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level Surge Protection Level TYPE II(DC),TYPE II(AC) Interface Communication Interface RS485/RS232/CAN Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional) General Data Operating Temperature Range -40 to +60℃, >
45℃ Derating Permissible Ambient Humidity 0~100% Permissible Altitude 2000m Noise ＜30 dB(A) Ingress Protection(IP) Rating IP 65 Inverter Topology Non-Isolated Over Voltage Category OVC II(DC),OVC IV(AC) Cabinet size（W*H*D） 420×670×233（Excluding connectors and brackets） Weight 30 Warranty 5 Years/10 Yearsthe Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy Type Of Cooling Intelligent air cooling Grid Regulation IEC 61727, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
- Categorie: Accesorii sisteme fotovoltaice
